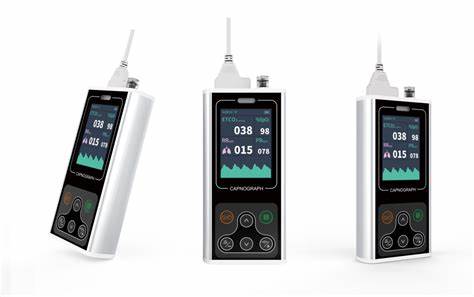

Contec CA10S Sidestream Capnograph/SPO2/Pulse Rate/Respiratory

Portable design

Compact and lightweight design, it is suitable for various emergency scenes such as patient transport, emergency, surgery and monitoring.

User Friendly product

Physical button with friendly software system, easy to study and operate.

Safety and reliable

2.8″ color LCD screen with customizable limits and unit audio-visual alarm system, provide reliable protection for patients.

Multi-dimensional and high spec measurement range

ETCO2 measuring range: 0-150mmHg

Respiration rate measuring range: 2-120rpm

SpO2 measurement range: 30-100%

Pulse measurement range: 25-250 bpm

Specifications:

End-tidal CO2 measurement:

1���Measurement range: 0 ~150mmHg

2���Resolution: 1mmHg

3���Accuracy:

0���40 mmHg�����2 mmHg

41���70 mmHg�����5% of readings

71���100 mmHg�����8% of readings

101���150 mmHg�����10% of readings

Respiration rate measurement:

1���Measurement range: 2rpm���120rbpm

2���Resolution: 1rpm

3���Accuracy: ��1rpm

SpO2 measurement:

1) Measurement range: 30���100 %

2) Resolution: 1%

3) Accuracy:

70���100 %���2 %

0���69 %���undefinition

u Pulse rate measurement:

1) Measurement range: 25���250 bpm

2) Resolution: 1bpm

3) Accuracy: ��2 bpm or ��2%,whichever is greater

Safety characteristic:

1���Device type: internally powered equipment

2���Degree of protection against electric shock: type BF applied part

3���Degree of protection against ingress of liquid: IPX1
